There are multiple communication ports of the controller( RS485 、CAN2.0、ETHERNET 、4G RF(433M)
* 4G communication module, used for network connec- tion and sending and receiving SMS function.
* WIFI hot spot function, used for user local wireless communication.
* GPS clock automatic setting function. Applications NobTra can be used in many applications:
* Stand alone unit capable to manage independently up to 4 junctions.
* Master of a Controller network.
* Variable Green Wave cycle, connecting an indefinite number of controllers via a serial line (star system).
* Green Wave, with synchronisation granted by GPS communication set up.

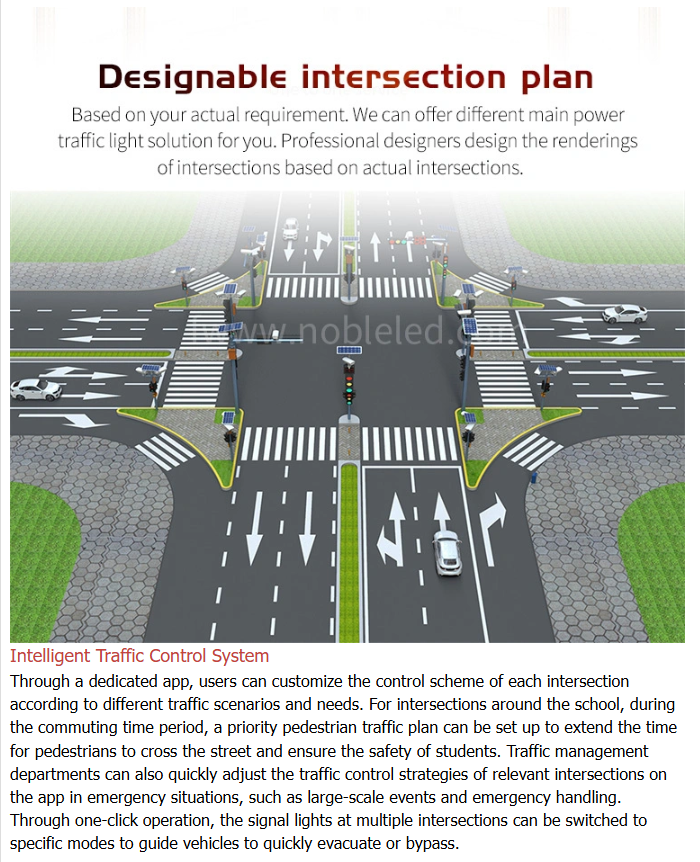

* Dynamic plan generation for a local intersection network.
* Manual control function.
NobTra
4 / 5

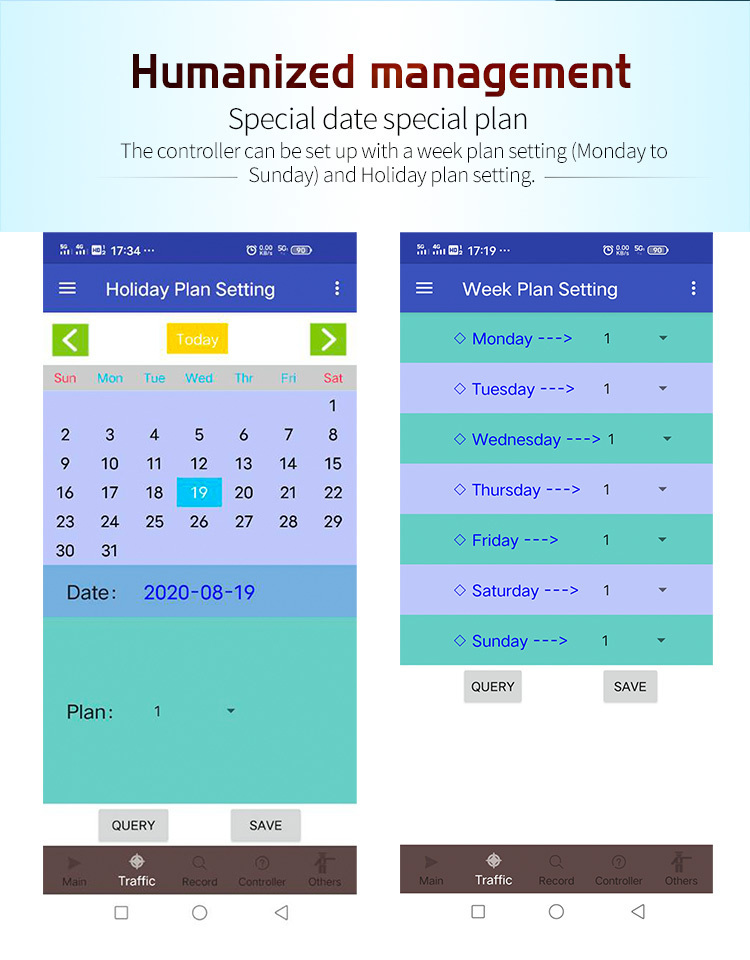

Intelligent Traffic Control System That Can Be Configured Via an APP to Simultaneously Run Multiple Schemes for Different Road ,Fault Output Function
stars, based on 0reviews
- NobTra intelligent traffic controller system ,5 year warranty ,
- APP ,GPS ,WIFI ,Fault output function.
Functions
GENERAL CHARACHERISTICS
CONTROLLER CAPABILITIES
Traffic signal management function.The controller has 16 groups of vehicle input switch signals, each group contains vehicle signals and fault signals, with 8 groups of pedestrian buttons to apply for input, 16 groups of sensor loop input. It can also access infrared, microwave, camera and other vehicle acquisition equipment.
There are 96 channels SCR output, 16 phase, 32 plans, the number of output channels and phase number according to the actual situation, all interfaces can be extended, with powerful flexibility.
There are 96 channels SCR output, 16 phase, 32 plans, the number of output channels and phase number according to the actual situation, all interfaces can be extended, with powerful flexibility.

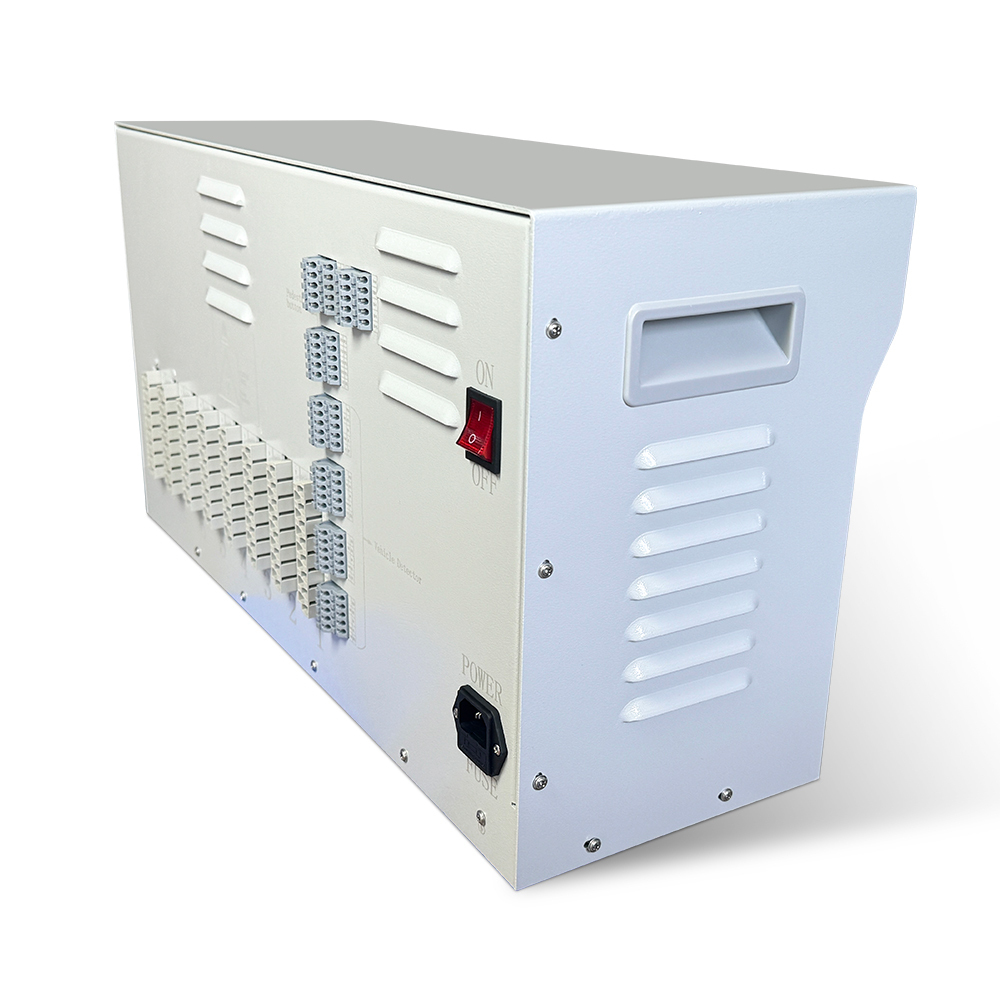

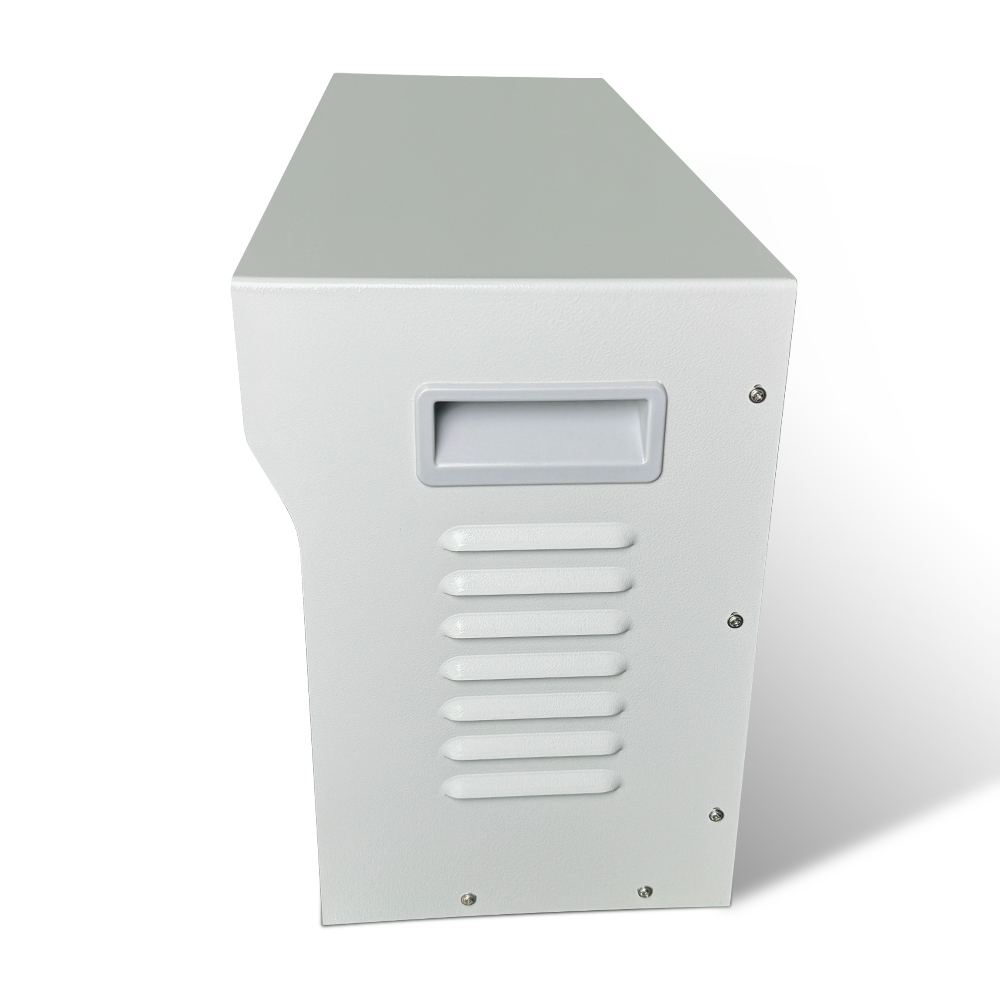

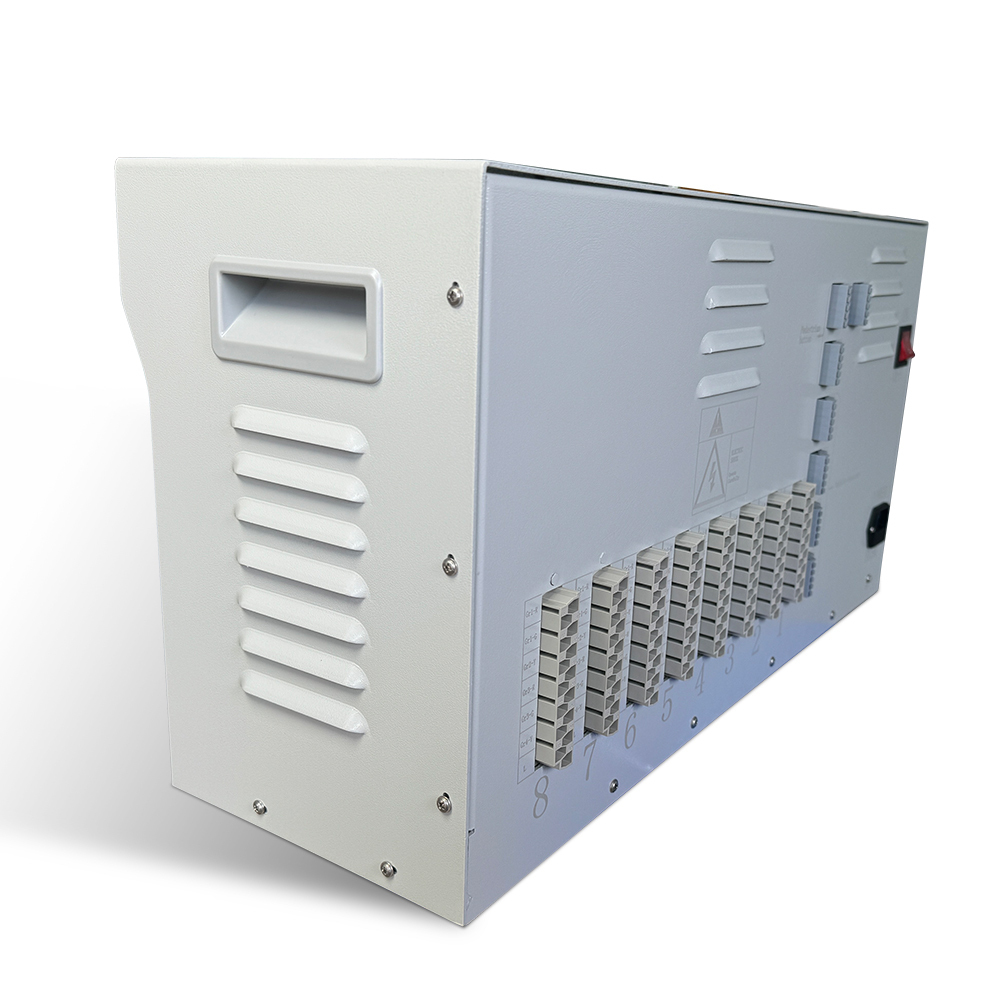

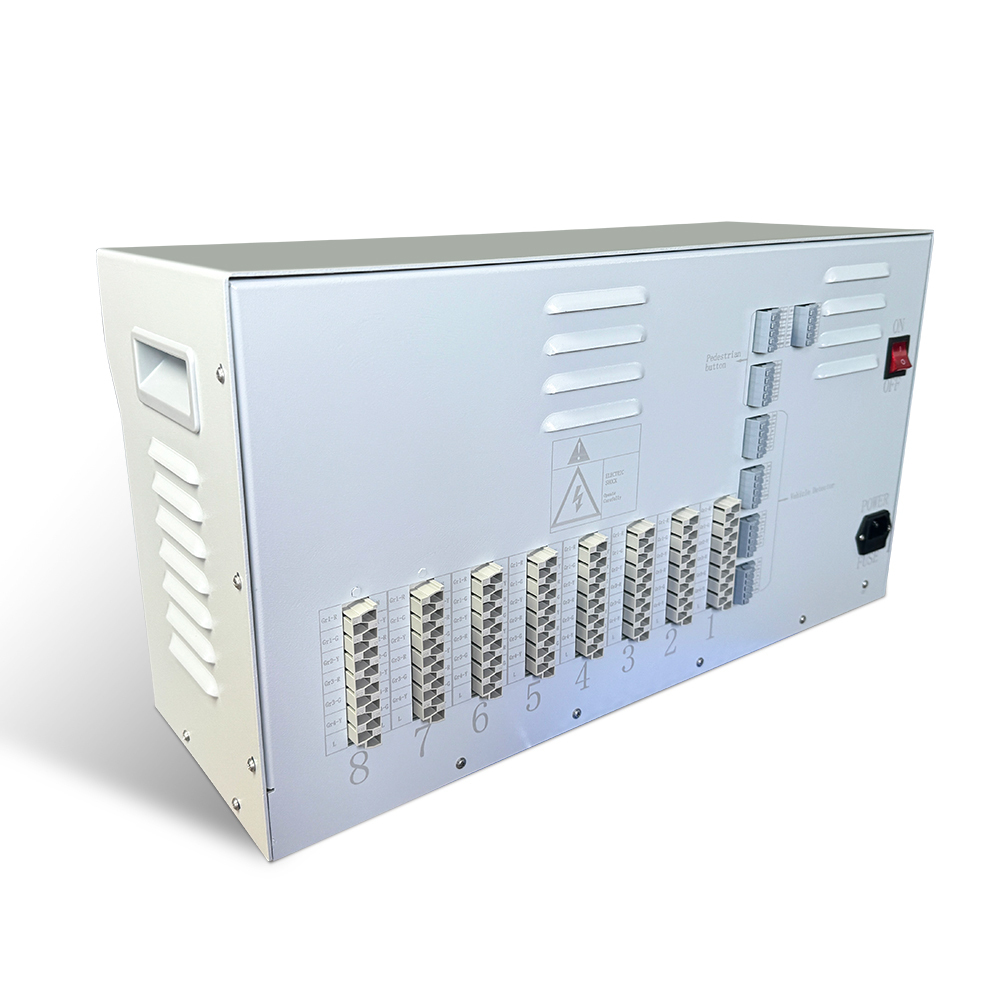

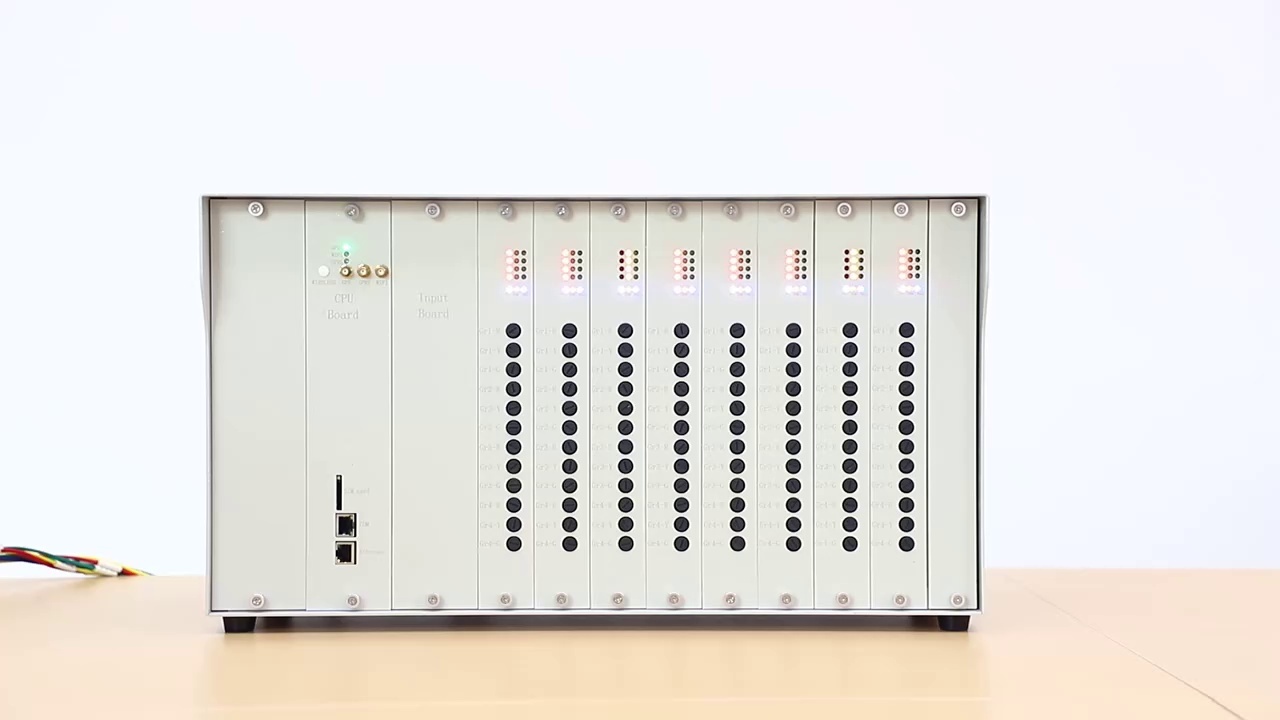

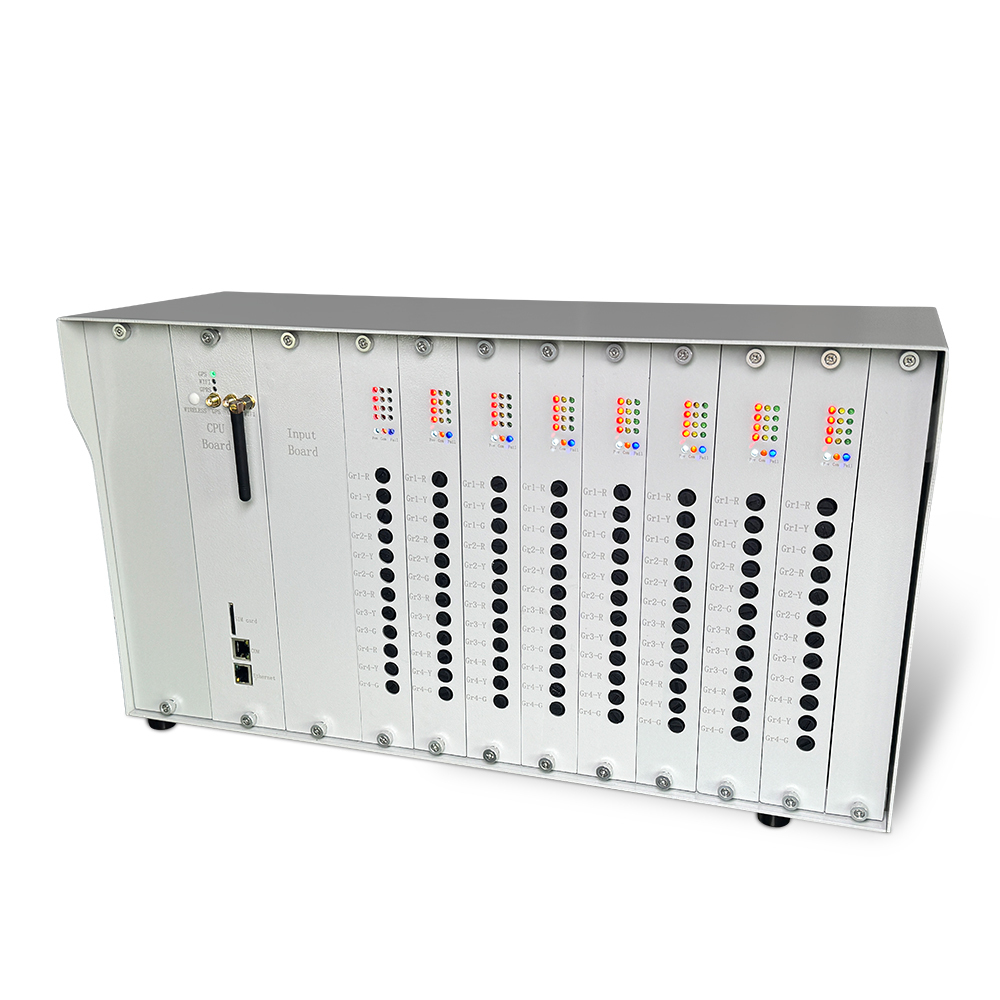

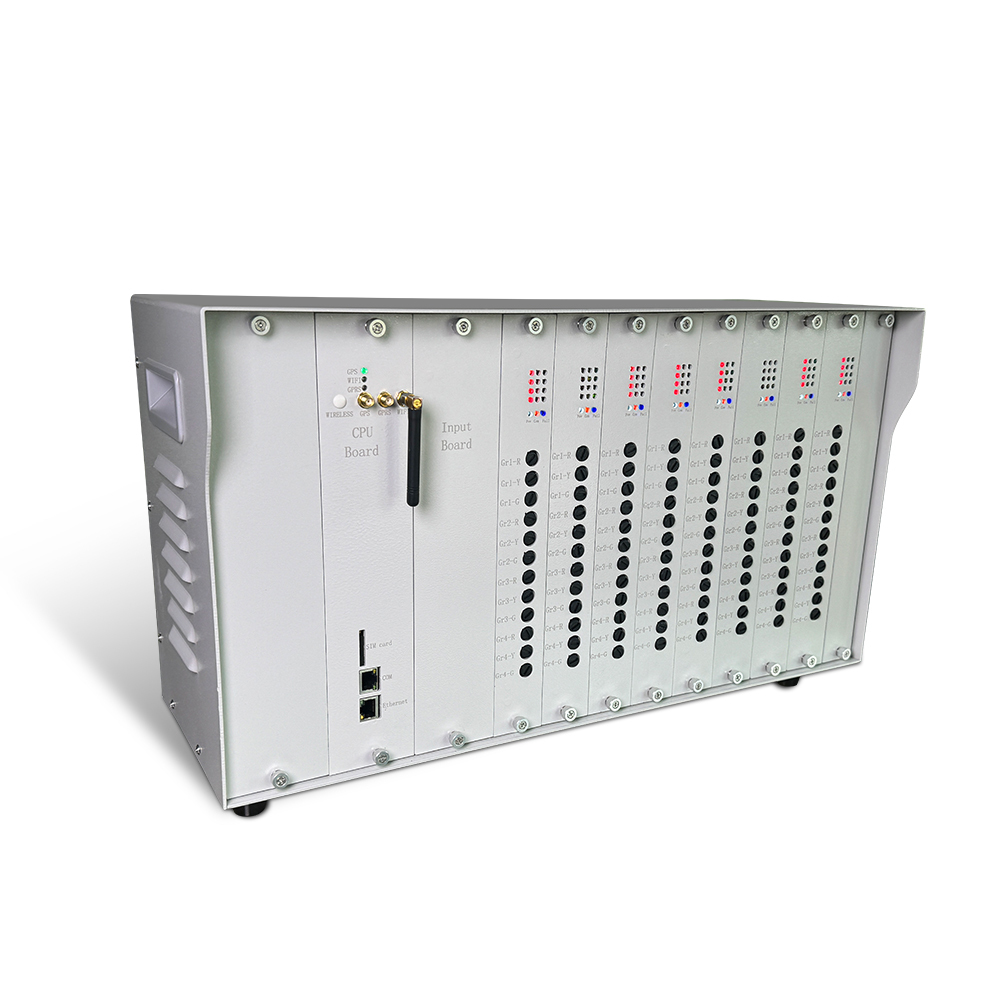

Product Photos

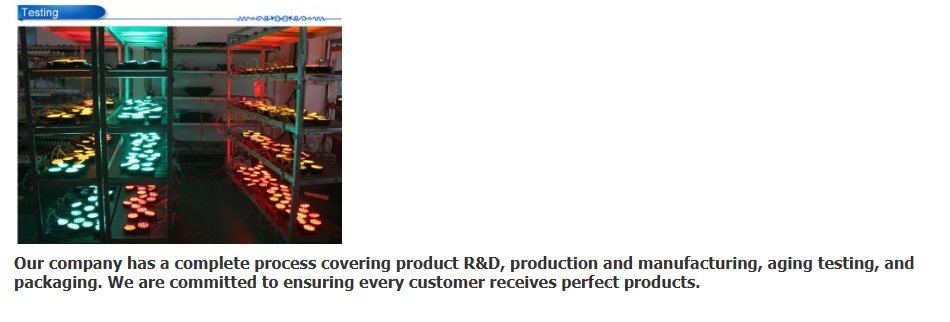

Testing
Our certificate
Our company
SHENZHEN NOBLE OPTO CO., LTD
1.SHENZHEN NOBLE OPTO CO., LTD is a high-tech private enterprise, Professional in researching,developing, and manufacturing high flux traffic signal light, solar power traffic signal.
2.Since(2008) the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led
traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore
etc.
2.Since(2008) the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led
traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore
etc.
- Material:
- Aluminum, Aluminum
- Place of Origin:
- Guangdong, China
- Brand Name:
- NOBLE
- Model Number:
- NBTSC300
- Application:
- Different Intersection, pedestrian crossings, schools, parking lots
- communication ports:
- RS485 , CAN2.0, ETHERNET , 4G RF(433M)
- Maximum controller load:
- 6000W
- Consumption (lamps excluded):
- 16VAC
- Main Supply:
- 85-265VAC (42 Vac available on request)
- Output lamp switching:
- 800W
- Output fuse:
- 2A type EF
- Hold-up time:
- 100ms
- Operating temperature:
- -40°C +80°C.
