12 Channel Programmable Intelligent LED Traffic Controller System 1 Year Warranty
stars, based on 0reviews
Wholesale High Quality 4 Phase Intelligent Traffic Controller for Toll Station

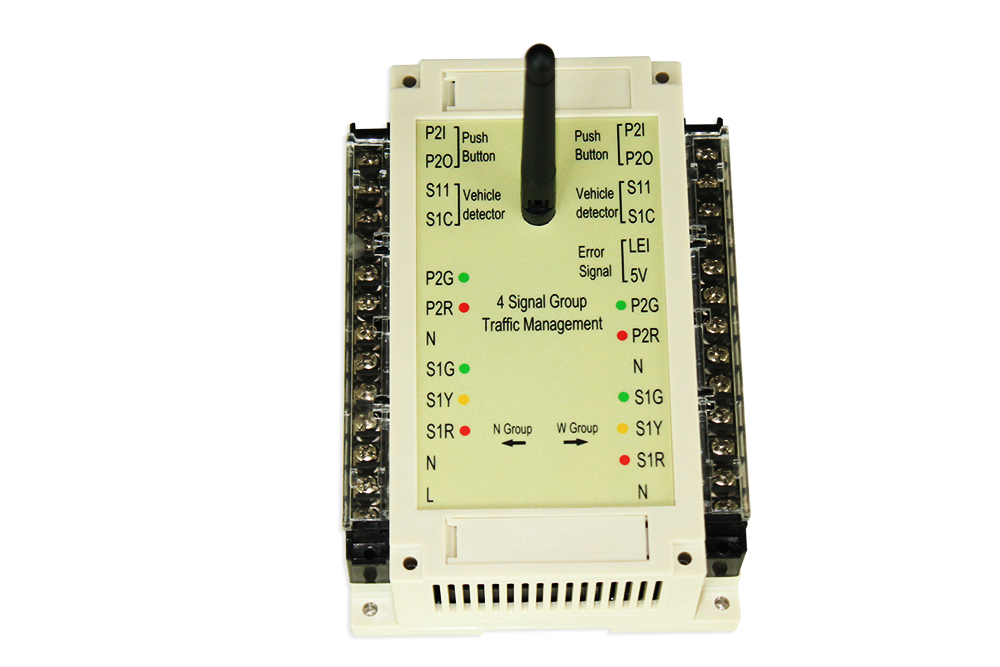

NOBLE The 4 stage 4 signal group controller that outputs four sets of phases. It has multi-time and multi-program control mode, APP setting, easy to use, simple structure, convenient installation, simple wiring, and easy to realize the entire intersection.
Product Description
Feature
* Stable performance: With embedded control system, the function is stable and reliable.
* Data anti-interference: Wireless data adopts FEC forward error correction algorithm, encryption algorithm, anti-interfer
ence ability and information security are greatly improved.
* Data storage: Working parameters such as time period and schedule can be saved for 10 years.
* Time saving: Using a high-precision clock chip, the power can be saved for half a year without error.
* Multi-time and multi-plan: 30 time period can be set, can support 200 programs. There is a fixed shutdown. Menu, boot menu, yellow flash menu, fault menu.
* Real-time output simulation: Display the status of each output port in real time.
* Manual function:With the functions of manual stepping , non-conflicting forced green, full red, yellow flashing and so on.
* Phase editing: Phase output can be programmed, according to actual needs.
* Housing：ABS
* Data anti-interference: Wireless data adopts FEC forward error correction algorithm, encryption algorithm, anti-interfer
ence ability and information security are greatly improved.
* Data storage: Working parameters such as time period and schedule can be saved for 10 years.
* Time saving: Using a high-precision clock chip, the power can be saved for half a year without error.
* Multi-time and multi-plan: 30 time period can be set, can support 200 programs. There is a fixed shutdown. Menu, boot menu, yellow flash menu, fault menu.
* Real-time output simulation: Display the status of each output port in real time.
* Manual function:With the functions of manual stepping , non-conflicting forced green, full red, yellow flashing and so on.
* Phase editing: Phase output can be programmed, according to actual needs.
* Housing：ABS
Specification
Model: NBTM-4 | ||
Items | Parameters | |
Product Name | The 4 Stage 4 Signal Group Traffic Controller | |
Power Consumption | 3W | |
Nominal Output Current Per Line | 5A | |
Loaded Power | ≤1100V/output | |
Frequency | 50~60HZ | |
Work Voltage | AC120~220V | |
Working Temperature | -40℃- +60℃ | |
Working Humility | ≤95% | |
Warranty | 2 | |
WIFI Distance | <10M | |
Debugging method | By WIIF connect with PC/Phone, APP debug. | |
Software Feature:
The friendly human-computer interface makes ,it easier to configure intersections. With the latest .Net and multi-threaded
multi-concurrent programming technology, it can adapt to multi-core hardware platforms and make full use of hardware resources. Online monitoring can monitor the operation status of each intersection control device and traffic light, report faults in time and record in the database to help analyze and maintain the system;More features can
be customized.
multi-concurrent programming technology, it can adapt to multi-core hardware platforms and make full use of hardware resources. Online monitoring can monitor the operation status of each intersection control device and traffic light, report faults in time and record in the database to help analyze and maintain the system;More features can
be customized.
Installation Location
The traffic control system is installed at a crossroad, a T-junction, a place where traffic needs to be indicated

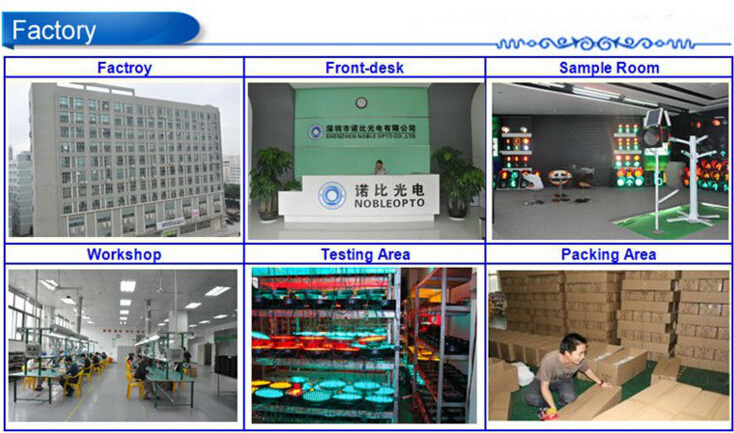

Company Profie
SHENZHEN NOBLE OPTO CO., LTD
1.SHENZHEN NOBLE OPTO CO., LTD is a high-tech private enterprise, Professional in researching,developing, and manufacturing high flux traffic signal light, solar power traffic signal.

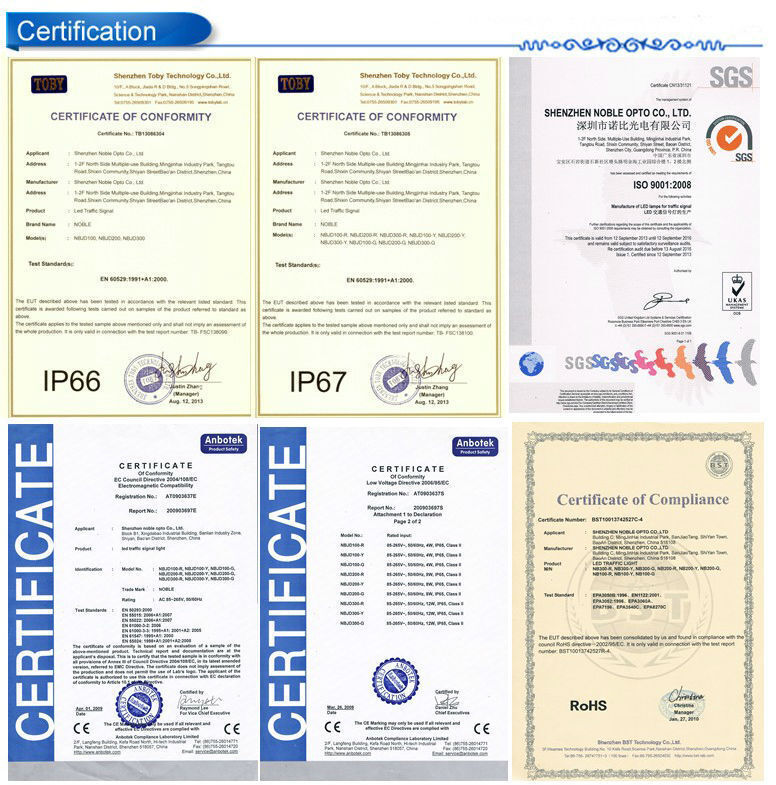

2.Since(2008) the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore etc.
1.SHENZHEN NOBLE OPTO CO., LTD is a high-tech private enterprise, Professional in researching,developing, and manufacturing high flux traffic signal light, solar power traffic signal.
2.Since(2008) the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore etc.
3. Our philosophy for management is to service our client with best quality and honesty. We will continue our effort in manufacturing best quality LED Traffic Light, LED Tube Light, LED Street Light etc., and making Noble Opto a first class LED traffic light, solar power traffic lights, led traffic signal, LED Street Light manufacturer around the world.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc.
2. Whole solar traffic light system include?
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problems on installation of traffic light, we will provide you video to show, or let you contact our engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestrian touch button,blind clock, etc.
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc.
2. Whole solar traffic light system include?
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problems on installation of traffic light, we will provide you video to show, or let you contact our engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestrian touch button,blind clock, etc.
Welcome to contact me for more details,
Shenzhen Noble Opto Co, Ltd
WeChat/WhatsApp：+86 19842365241
Email：gleb@nobleled.com
- Place of Origin:
- Guangdong, China
- Brand Name:
- NO
- Product name:
- hot sale Intelligent Traffic light controller for traffic safety
- Type:
- NBTM-4
- Warranty:
- 2 Years
- Application:
- Traffic Roadway Safety
- Voltage:
- AC120V/220V
- Waterproof:
- IP66
- Power:
- 3W
- Certification:
- CE ROHS
- Package:
- Carton Box Package
- Debugging method:
- By WIIF connect with PC/Phone, APP debug.
